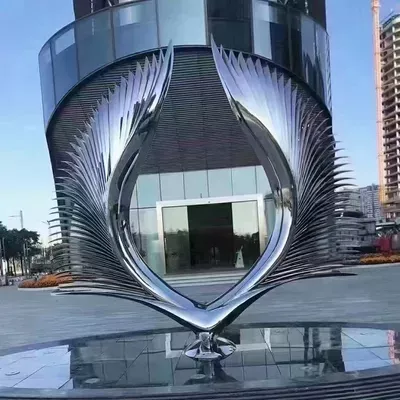

Stainless steel hollow sculptures with integrated lighting systems combine structural engineering, material science, and lighting design. These installations are specified for urban plazas, corporate campuses, hotel lobbies, public parks, and residential developments where durability, visual impact, and nighttime visibility are required. The hollow construction method reduces material weight while maintaining structural integrity, and the integration of LED lighting systems provides nighttime illumination with controllable color and intensity. Quyang Zhihong Landscape Engineering Co., Ltd. designs and fabricates customized stainless steel hollow sculptures with integrated lighting systems for projects worldwide. The following technical information is based on industry manufacturing standards, material specifications, and structural engineering principles.
The selection of stainless steel grade determines the sculpture's corrosion resistance, surface finish retention, and structural lifespan in outdoor environments. Two primary grades are used for hollow sculptures, with a third grade specified for high-exposure conditions.
Grade 304 stainless steel is the most commonly specified material for hollow sculptures in standard outdoor environments. This austenitic chromium-nickel alloy contains eighteen percent chromium and eight percent nickel. The chromium content forms a passive oxide layer on the metal surface, providing corrosion resistance in non-marine atmospheres. For applications in urban parks, residential gardens, and commercial plazas away from coastal exposure, grade 304 provides a service life of ten to fifteen years with routine maintenance. The material has a density of eight grams per cubic centimeter and a tensile strength of approximately five hundred fifteen megapascals. The surface finish options for grade 304 include mirror polish, brushed satin, and bead-blasted matte.
Grade 316 stainless steel contains sixteen percent chromium, ten percent nickel, and two to three percent molybdenum. The molybdenum addition improves resistance to chloride-induced corrosion, making this grade suitable for coastal installations and environments with de-icing salt exposure. For sculptures installed within three kilometers of salt water or in regions with heavy road salt application, grade 316 provides extended service life of fifteen to twenty years. The material exhibits tensile strength of approximately five hundred fifty megapascals and maintains surface reflectivity in aggressive atmospheric conditions. The higher nickel and molybdenum content increases material cost by approximately thirty to forty percent compared to grade 304.
For high-exposure environments such as coastal public art installations or industrial zones, 316L stainless steel offers enhanced corrosion resistance. The lower carbon content of 316L improves weldability and reduces the risk of intergranular corrosion at welded joints. This grade provides a service life exceeding twenty years in coastal environments and is specified for sculptures intended for permanent installation in challenging conditions. The material supports mirror-polished finishes that retain reflectivity with minimal maintenance.
Hollow construction is a fabrication method where stainless steel sheets are shaped and welded to create three-dimensional forms with empty internal volumes rather than solid metal masses. This technique provides several engineering and economic advantages.
Hollow fabrication techniques reduce sculpture weight by approximately ninety-five percent compared to solid designs of equivalent external dimensions. For a sculpture with an external volume of ten cubic meters, solid stainless steel would weigh approximately eighty metric tons. A hollow construction using two millimeter thick sheet steel weighs approximately one point six metric tons, representing a ninety-eight percent weight reduction. This weight reduction affects foundation requirements, transportation costs, and installation equipment needs. A hollow sculpture weighing two metric tons requires a concrete foundation of approximately three to four cubic meters, while a solid sculpture of the same size would require a foundation of fifty to sixty cubic meters. Transportation costs decrease proportionally with weight, and lighter sculptures can be installed using standard cranes rather than heavy-lift equipment.
The structural strength of hollow stainless steel sculptures derives from geometric shape rather than material thickness. Curved surfaces and faceted panels create structural stiffness through their three-dimensional form. This principle, known as shell or monocoque construction, distributes loads across the entire surface rather than concentrating them at internal frames. Internal stiffening ribs and gussets are added at intervals of five hundred to one thousand millimeters to prevent panel deflection under wind and snow loads. For large-scale installations exceeding five meters in height, finite element modeling is used to analyze stress distribution across the hollow structure. This analysis identifies areas requiring additional internal support or increased sheet thickness. The engineering process balances weight minimization with structural safety under specified load conditions including wind speeds of up to forty meters per second and snow loads of up to two hundred kilograms per square meter.
The wall thickness of hollow stainless steel sculptures typically ranges from one point five to four millimeters. Thinner material reduces weight and cost but may be susceptible to denting and panel deflection. Thicker material increases durability and rigidity but adds weight and fabrication difficulty. For sculptures intended for public spaces where contact with the public is expected, wall thickness of two point five to three millimeters is specified. This thickness resists denting from casual contact while remaining workable during fabrication. For sculptures installed in locations with limited public access, such as building lobbies or corporate atriums, one point five to two millimeter thickness is adequate.
The integration of lighting into stainless steel hollow sculptures requires coordination between metal fabrication and lighting system design. Lighting components must be accessible for maintenance while protected from environmental exposure.
LED lighting is the standard light source for illuminated sculptures due to energy efficiency and long operational life. Quality LED systems achieve L70 lumen maintenance of fifty thousand hours, meaning light output remains at seventy percent of initial levels after fifty thousand hours of operation. At eight hours of daily operation, this represents approximately seventeen years of service life before replacement is required. Energy consumption for sculpture lighting typically ranges from four point five to eight watts per square meter of illuminated surface area, depending on desired brightness and LED density. Compared to traditional lighting systems using halogen or fluorescent sources, LED integration reduces power consumption by twenty to forty percent. For a sculpture with fifty square meters of illuminated surface, annual energy consumption ranges from one thousand to two thousand kilowatt hours at eight hours of daily operation.
For sculptures where accurate color perception is important, the Color Rendering Index of the light source is considered. A CRI of eighty or higher is standard for most applications. For installations where precise color discrimination is required, such as sculptures with colored finishes or integration with landscaping, CRI of ninety or higher is specified. Light color temperature is specified in Kelvin. Warm white at two thousand seven hundred to three thousand Kelvin creates a soft, amber-toned illumination suitable for residential gardens and traditional architecture. Neutral white at four thousand to four thousand five hundred Kelvin produces a balanced light for commercial applications. Cool white at five thousand to six thousand Kelvin creates a bright, blue-toned light suitable for modern architecture and high-visibility installations.
RGB LED systems allow color changing effects through the combination of red, green, and blue light sources. Each color channel is controlled independently, allowing the creation of millions of color combinations. Dynamic effects include color fading, color chasing, strobe effects, and pattern sequencing. DMX control is the standard protocol for RGB lighting systems. A DMX controller sends signals to LED drivers, specifying color and intensity for each lighting zone or individual fixture. DMX systems support up to five hundred twelve channels per universe, with each channel controlling one color of one fixture. For large sculptures with multiple lighting zones, multiple DMX universes are combined to provide independent control of each section.
Outdoor lighting components must be specified with appropriate ingress protection ratings. The IP rating system defines protection against solid objects and liquids. The first digit indicates protection against solids, ranging from zero for no protection to six for dust-tight. The second digit indicates protection against liquids, ranging from zero for no protection to eight for continuous immersion. For outdoor sculptures exposed to rain and spray, lighting components require an IP65 rating. The first digit six indicates dust-tight protection. The second digit five indicates protection against water jets from any direction. For sculptures installed in locations subject to standing water or high-pressure cleaning, IP67 or IP68 ratings are specified. IP67 allows temporary immersion to one meter depth for thirty minutes, while IP68 permits continuous immersion under specified conditions.
The fabrication of customized hollow stainless steel sculptures follows a multi-stage process from initial design through final finishing and installation.
The fabrication process begins with the creation of scale models and digital models. Physical scale models at one tenth or one twentieth scale allow the design team and client to evaluate proportions and surface development from multiple viewing angles. These models are typically fabricated from foam, clay, or three-dimensional printed materials. Digital three-dimensional modeling is performed using computer-aided design software. The digital model defines the external surface geometry and serves as the basis for structural analysis and panel layout. For sculptures with complex double-curved surfaces, the digital model is divided into individual panels for fabrication using computational unfolding techniques. Each panel is assigned a unique identifier for tracking through the fabrication and assembly process.
Stainless steel sheets are cut to panel shapes using either laser cutting or water jet cutting. Laser cutting provides high precision with kerf width of zero point one to zero point three millimeters and is suitable for sheet thickness up to twelve millimeters. Water jet cutting uses high-pressure water mixed with abrasive garnet and produces no heat-affected zone, preserving the material properties at the cut edge. After cutting, panels are shaped to the required curvature using either press brake forming for simple cylindrical or conical curves or stretch forming for compound double-curved surfaces. Press brake forming uses a punch and die set to create linear bends at specified angles. Stretch forming involves clamping the panel at the edges and stretching it over a form block, creating smooth compound curves without surface distortion.
Panels are assembled into the final hollow form using tungsten inert gas welding. TIG welding produces high-quality welds with minimal spatter and allows precise control of heat input, reducing distortion of the thin stainless steel sheets. For visible exterior welds on mirror-polished sculptures, the weld bead is ground flush with the surrounding surface and then polished to match the adjacent finish. This process, known as blending, requires skilled craftsmen and adds significant labor time to the fabrication schedule. For sculptures with brushed or matte finishes, welds are ground and then refined using progressively finer abrasives to match the surrounding texture. Internal structural supports including ribs, gussets, and mounting brackets are welded to the interior surface before the final panel is closed. Access panels are provided at strategic locations to allow entry for welding internal components and for future maintenance access to lighting systems.
The surface finish of stainless steel sculptures is specified according to the required aesthetic and functional characteristics. Mirror polish, also known as number eight finish, is produced by progressive sanding using abrasive grits from eighty through three thousand, followed by buffing with polishing compounds. Mirror finish achieves surface roughness below zero point zero five micrometers and provides maximum reflectivity and corrosion resistance. Brushed satin finish, also known as number four finish, is produced by sanding with one hundred fifty to two hundred forty grit abrasives in a single direction. This finish hides minor scratches and fingerprints better than mirror polish and is specified for high-touch public installations. Bead-blasted matte finish is produced by propelling glass beads at the metal surface under compressed air. This creates a uniform, non-reflective surface with roughness of one to three micrometers. Bead-blasted finishes are specified for sculptures where glare reduction is important or where a contemporary aesthetic is desired.
Several methods are used to integrate lighting into hollow stainless steel sculptures, each with specific technical requirements and aesthetic outcomes.
Perforated stainless steel panels allow light from internal LED sources to pass through the sculpture surface. Perforation patterns include round holes, slotted openings, and custom shapes arranged in gradients or repeating patterns. Perforation diameters typically range from three to twenty millimeters, with open areas from ten to fifty percent of the panel surface. Internal LED lighting for perforated sculptures uses linear LED strips or modular LED panels mounted on internal support frames. The distance between the LED source and the perforated surface affects the apparent brightness and spread of light at each opening. A distance of fifty to one hundred millimeters produces distinct points of light at each perforation. A distance of two hundred to three hundred millimeters creates a softer, diffused glow.
For sculptures with cutout shapes or open geometric forms, edge lighting can be installed along the perimeter of the opening. LED linear profiles are mounted to the interior edge of the cutout, directing light across the opening or onto adjacent surfaces. Edge lighting requires careful management of wire routing and fixture placement to remain invisible from exterior viewing angles. The LED profile is typically recessed into the cutout edge, with a diffuser cover that matches the surrounding surface finish.
External accent lighting uses fixtures mounted on the ground or on adjacent structures to illuminate the sculpture from outside. This method is specified when internal lighting is not feasible due to sculpture geometry or when a different aesthetic effect is desired. Ground-mounted uplights are positioned at distances of one to three meters from the sculpture base, with beam angles of fifteen to sixty degrees depending on sculpture height. For sculptures exceeding five meters in height, multiple uplights are positioned around the perimeter to ensure even illumination. Wall-mounted fixtures or pole-mounted fixtures are used for sculptures installed against building facades or within existing lighting infrastructure.
Proper installation and foundation design are critical for the long-term stability and safety of stainless steel hollow sculptures.
The foundation for a hollow stainless steel sculpture must resist overturning moments from wind loads while supporting the sculpture weight. For a sculpture weighing two metric tons with a height of five meters, the overturning moment at a wind speed of forty meters per second is approximately fifteen kilonewton-meters. The foundation must provide sufficient dead weight and embedment depth to resist this moment. Concrete foundations are typically specified for outdoor installations. The foundation dimensions are determined by soil bearing capacity, sculpture height, and local wind and seismic design requirements. For a sculpture of five meters height, a foundation of two meters by two meters by one meter depth is typical, containing approximately four cubic meters of reinforced concrete.
Base-plate mounting uses a steel plate welded to the bottom of the sculpture, which is bolted to anchor bolts embedded in the concrete foundation. This method allows future removal of the sculpture if required. Base plates are typically twenty to twenty-five millimeters thick, with four to eight anchor bolts of twenty to twenty-five millimeter diameter. Direct embedment involves extending the sculpture's internal structural frame into the foundation before concrete placement. This method provides greater resistance to overturning forces but does not allow future removal without cutting the sculpture. Direct embedment is specified for permanent installations in high-wind or high-seismic regions.
Regular maintenance ensures the continued appearance and function of stainless steel hollow sculptures with integrated lighting systems.
Stainless steel surfaces in outdoor environments require periodic cleaning to remove atmospheric deposits and maintain corrosion resistance. Cleaning frequency depends on local air quality and exposure conditions. In urban or industrial areas, cleaning every six to twelve months is recommended. In rural or coastal areas, cleaning every twelve to eighteen months is sufficient. Cleaning is performed using mild detergent solutions and non-abrasive cloths or sponges. Abrasive cleaners and steel wool are not used as they damage the passive oxide layer and create surface scratches. After cleaning, the surface is rinsed with clean water and dried to prevent water spots. For mirror-polished surfaces, occasional re-polishing may be required in high-contact areas where fingerprints or minor scratches accumulate. Re-polishing is performed using progressive grit abrasives from six hundred through three thousand, followed by buffing with polishing compound.
LED lighting systems require minimal maintenance but periodic inspection is recommended. Inspection intervals of twelve months are standard. During inspection, all fixtures are checked for moisture ingress, physical damage, and proper operation. Failed LED modules are replaced with identical components to maintain consistent color and brightness. Lens cleaning is performed at the same interval as stainless steel surface cleaning. Dirty lenses reduce light output by ten to thirty percent, depending on the type and thickness of accumulated deposits. Lens cleaning uses mild detergent and soft cloths, avoiding abrasive materials that could scratch the lens surface.
Customized stainless steel hollow sculptures with lights are specified for a variety of project types. Urban plaza installations typically range from four to ten meters in height and serve as focal points for pedestrian spaces. These sculptures often incorporate public seating or interactive elements such as color-changing lights responsive to motion sensors. Corporate campus installations range from two to six meters in height and are positioned at building entrances, courtyards, or along arrival drives. Corporate sculptures often incorporate company logos or brand colors into the lighting design. Hotel and resort installations include lobby centerpieces, poolside features, and garden accents. These sculptures typically use warm color temperatures and gentle color transitions to create a relaxing atmosphere. Park and garden installations range from one to three meters in height for path-side accents to five to eight meters for central features. Park sculptures often incorporate lower lighting levels that complement rather than compete with natural landscape lighting.
Quality control procedures for customized stainless steel hollow sculptures with lights include material verification, dimensional inspection, welding quality assessment, surface finish evaluation, and lighting system testing. Material certificates are provided for all stainless steel used in fabrication, confirming grade composition and mill origin. Dimensional inspection uses laser measurement or coordinate measuring machines to verify that finished dimensions match design specifications within specified tolerances of plus or minus two millimeters per meter. Welding quality is assessed through visual inspection of all exterior and structural welds. Penetrant dye testing is performed on critical structural welds to detect surface-breaking defects. Surface finish is evaluated using visual comparison to approved reference samples and profilometer measurement of surface roughness where specified. Lighting system testing includes verification of proper operation of all fixtures, measurement of light output at specified points on the sculpture surface, and confirmation of control system functionality including color mixing and dynamic effects.
Customized stainless steel hollow sculptures with integrated lighting systems combine durable material selection, efficient hollow construction, and energy-efficient LED illumination. Grade 304 stainless steel is suitable for most standard outdoor applications, while grade 316 or 316L is specified for coastal or high-exposure environments. Hollow construction reduces weight by approximately ninety-five percent compared to solid designs, lowering foundation, transportation, and installation costs while maintaining structural integrity through geometric stiffness. LED lighting systems provide fifty thousand hours of operational life with energy consumption of four point five to eight watts per square meter of illuminated surface. RGB systems with DMX control enable dynamic color effects suitable for public art and architectural applications. Proper installation requires engineered foundations sized for local wind and soil conditions, and regular maintenance ensures continued performance and appearance. Quyang Zhihong Landscape Engineering Co., Ltd. provides design, fabrication, and installation services for customized stainless steel hollow sculptures with integrated lighting systems. The company's fabrication capabilities include laser cutting, TIG welding, surface finishing, and lighting integration, with quality control procedures ensuring compliance with specified material, dimensional, and performance requirements.
